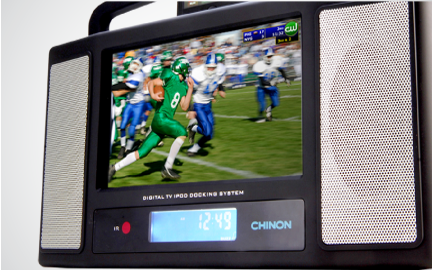

CHINON AVi iPod Docking Station with ATSC Digital TV
Play video and music directly from your iPods! Just dock your iPod in the top of the AVi and enjoy your music and videos on the big screen & with rich, room-filling sound. Your AVi, when docked with an iPod Touch connected by wi-fi, can stream web video. Docking any iPod in the top of the AVi will merge the two systems into one! The small video on your iPod will now play on the large, vivid screen of the AVi. And the sound from the AVi's speakers will fill the room. Your iPod will automatically recharge when docked into the AVi. Your AVi, when docked with an iPod Touch connected by wi-fi, can stream web video.
The AVi comes with one detatchable digital antenna for receiving digital TV broadcasts and one built-in antenna for receiving FM Radio broadcasts. If you have an older analog TV, the AVi can work as a digital TV converter when connected to the TV. Auto scan will preset your digital radio and TV stations for quick and easy selection.
|
SPECIFICATIONS
|
||
| Digital TV Signal System | ATSC | |
| LCD Panel Size | 7 Inch TFT LCD | |
| Panel Resolution | 480(RGB)(H) X 234(V) | |
| Panel Pixel Pitch | 0.321(H) X 0.370(V) mm | |
| RF Input Resistance | 75 OHM | |
| RF Receiving Range | 54MHz-863MHz | |
| RF Connector Type | F Female type | |
| Modulation Format | 8 VSB | |
| Channel Bandwidth | 6 MHz | |
| Video Output | Composite (RCA x 1) | |
| Analog Audio Output | Left & right channels (RCA x 2) | |
| FM Frequency Range | 87.0 -108 MHz | |
| Power Source | DC 12V / 1.5A | |
| Batteries | 8 x size "C" | |
| Working Current Consumption | 900mA | |
| Standby Current Consumption | 25mA | |
| iPod Charging Current | 500mA Max | |
| Speaker Output | 2.5W x 2 | |
| Operating Temperature | 0 - 40°C | |
| Weight | 2 Lbs. (1.2kg) | |
| Dimensions (L X W X H) | 300mm x 113mm x 153mm | |
